Ceiling Large Air Volume Exhaust Fan

Large Air Volume Exhaust Fan

The 45 degree cross cut diversion port can increase the ventilation range and improve indoor air quality,so that you can feel fresh air at any time.

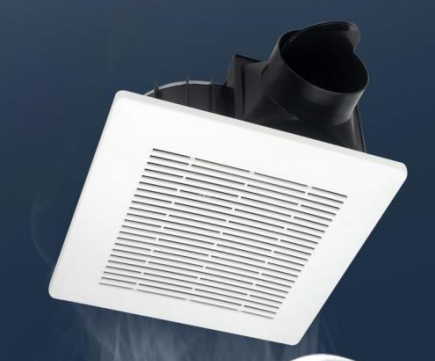

The panel adopts fashionable grille design and is suitable for installation in various places.Smooth line design makes the ventilation more stronger and more complete.
The panel is made of high-quality PP Flame retardant material with good flame retardancy and high temperature resistance.
Large wind wheel with wide air duct .
Large air volume,low noise and high efficiencyHigh speed copper motor.
High temperature resistance,no deformation and long service life.
Unequal distance wind turbine blades release more air volume,which can remove indoor dirty air,moisture and smoke faster.

  • Ceiling Large Air Volume Exhaust Fan
  • Ceiling Large Air Volume Exhaust Fan
  • Ceiling Large Air Volume Exhaust Fan
  • Ceiling Large Air Volume Exhaust Fan

Description

Ceiling Exhaust Fan

PFS-24



PFS-30



PFS-33



Model PFS24 PFS-30 PFS-33
Air volume 130m³/h 168m³/h 500m³/h
Noise 34dB 41dB 39dB

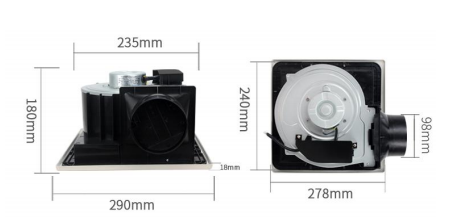

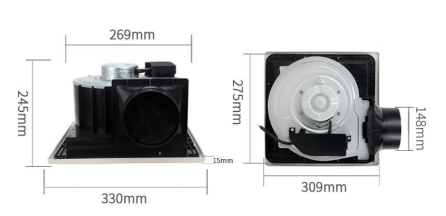

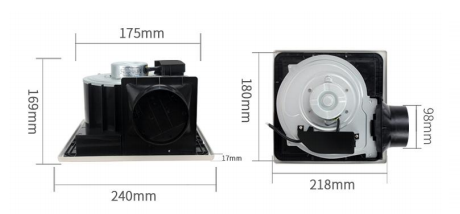

Opening size 180mm*180mm 240mm*240mm 275mm*275mm
Rated power 15W 23W 62W
Installation size  φ100mm φ100mm φ150mm
Fan hole size φ98mm φ98mm φ148mm
Rated voltage: 110V~220V 60Hz/50Hz 110V/220V    60Hz/ 50Hz 110V/220V   60Hz/ 50Hz
