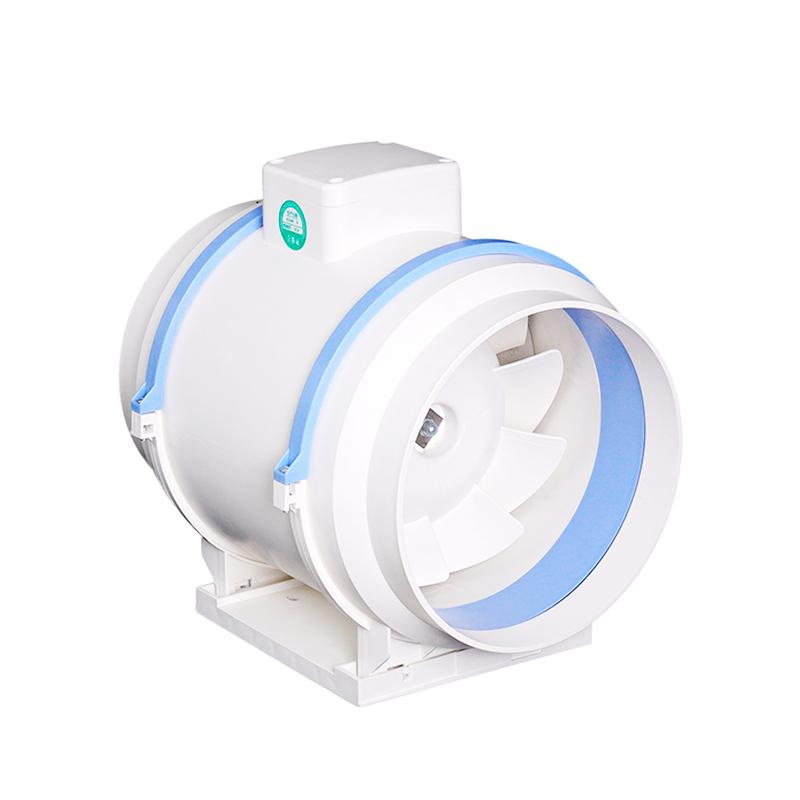

Ventilation System Advantage:
1. Independent R&D with Proprietary Molds
2. Patented Design for Modern Aesthetics
3. Precision Craftsmanship with High Cost-Effectiveness
4. Full-Copper Motor – Delivers Powerful Suction, High Airflow, and Long Lifespan
5. Ball Bearing for Low Noise Operation
6. IPX2 waterproof grade for humid and harsh environment
7. VO-Grade Flame-Retardant Material for Enhanced Safety
8. Check Valve Prevents Backflow
9. Modular Design for Easy Installation

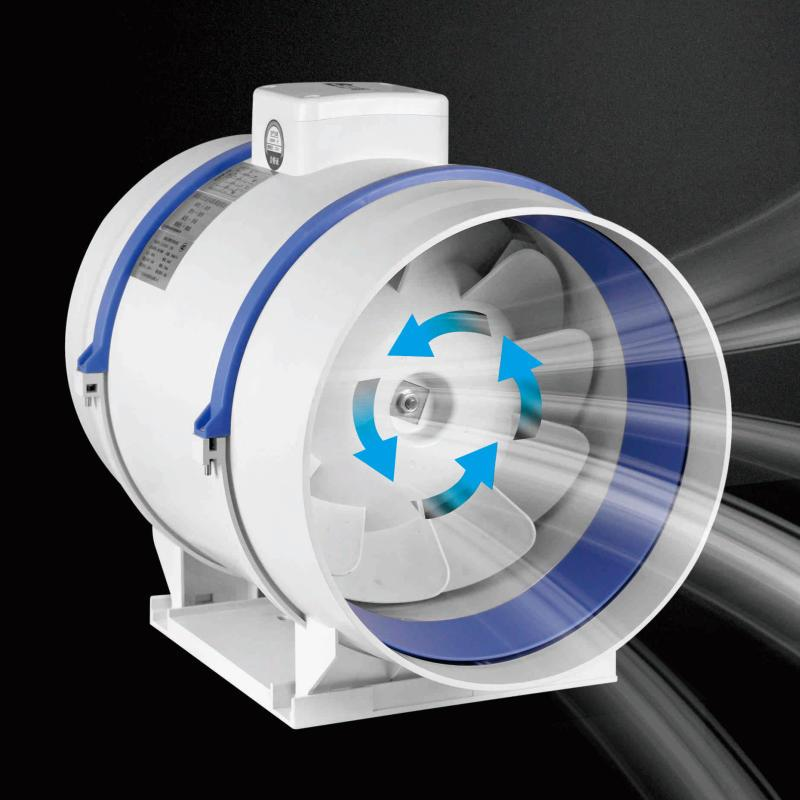

10. Turbine Blades for Powerful Ventilation
11. Dual-Speed Control for Energy Efficiency
12. Brand-new, Corrosion resistant ABS Shell
13. Wide Application: Ideal for various environments, including restaurants, BBQ grills,wellness centers, clubs, homes, offices, gaming rooms, internet cafes, hotels, and more, ensuring convenient ventilation
|

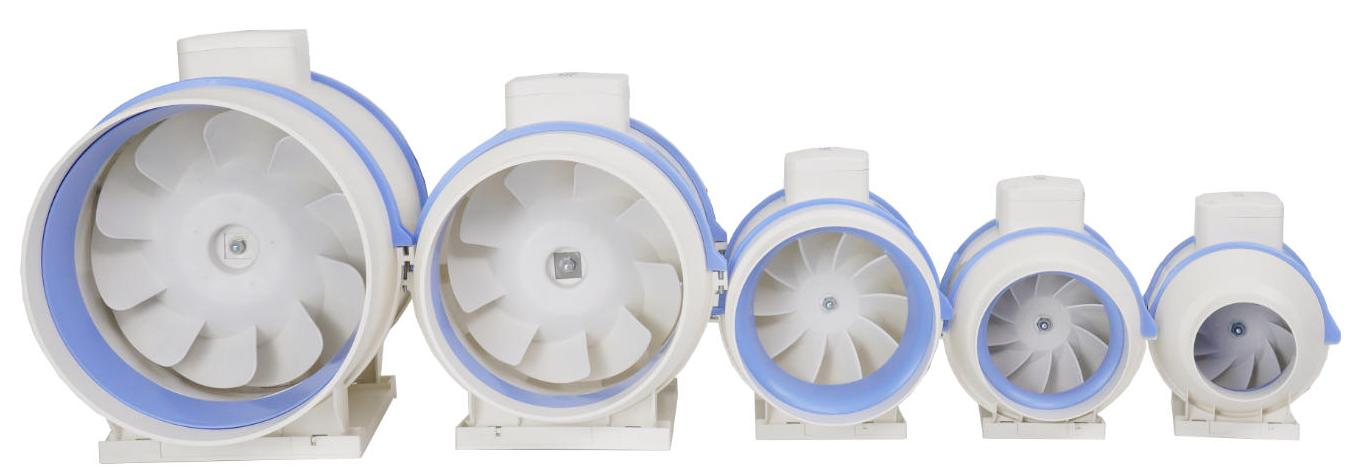

Model:
|
ZS-XL100 4inch
|
ZS-XL150 6inch
|
ZS-XL200 8inch
|
ZS-XL250 10inch
|
ZS-XL315 12inch
|
ZS-XL100-2 4inch
|
|
Power:
|
26 ～30W
|
40～48W
|
60 ～76 W
|
170～ 215 W
|
260 ～350 W
|
33 ～38 W
|
|
Air volume:
|
170～ 230 m³/h
|
384 ～540m³/h
|
820 /～980 m³/h
|
1500 ～1500 m³/h
|
1950 ～2450 m³/h
|
250～280 m³/h
|
|
Wind pressure:
|
130 ～ 180 pa
|
280 ～330 pa
|
280～ 350 pa
|
400～ 550 pa
|
500 ～700 pa
|
130～180 pa
|
|
Noise:
|
25 ～30dB
|
35～40dB
|
45 ～50dB
|
55～ 60dB
|
61 ～65dB
|
25 ～30dB
|
|
Speed:
|
2000 ～2300 rpm
|
2000 ～2450 rpm
|
2000 ～2500 rpm
|
2000～ 2500 rpm
|
2000 ～2600 rpm
|
2500～2800 rpm
|
|
Caliber:
|
φ100～125 mm
|
φ150～160 mm
|
φ200 mm
|
φ250 mm
|
φ315 mm
|
φ100～125 mm
|
|
Applicable area:
|
10～18 m²
|
18～36 m²
|
34～76 m²
|
55～130 m²
|
90 ～200 m²
|
3～6 m²
|
|
Rated voltage:
|
110V～220V 60Hz/50Hz
|
110V/220V
60Hz/ 50Hz |
110V/220V
60Hz/ 50Hz |
110V/220V
60Hz / 50Hz |
110V/220V
60Hz / 50Hz |
110V220V
60Hz/ 50Hz |
|
Weight:
|
1.92 kg
|
2.05 kg
|
2.86 kg
|
9 kg
|
10 kg
|
1.92 kg
|
|

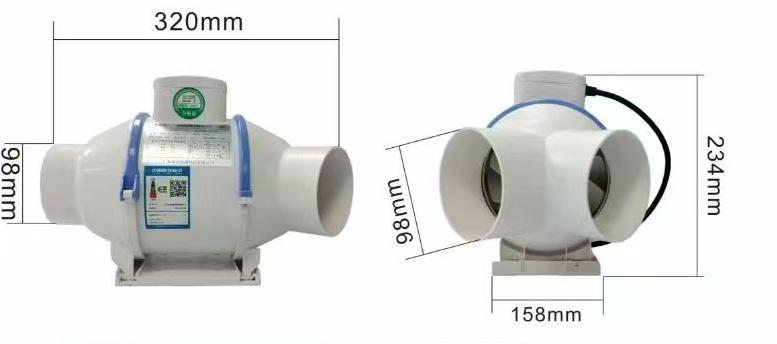

Size:
|

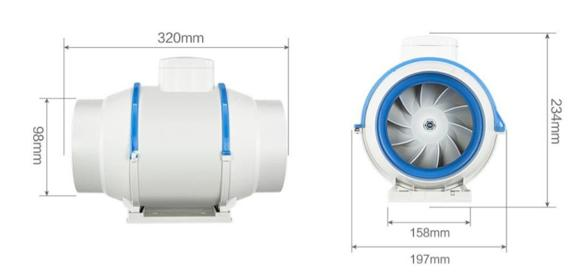

320*197*234 mm
|

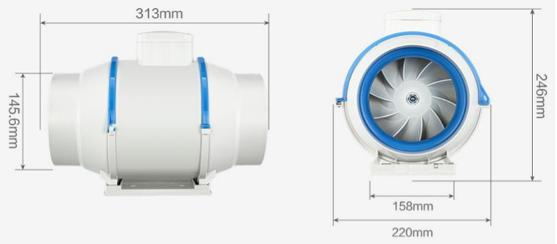

313*220*246 mm
|

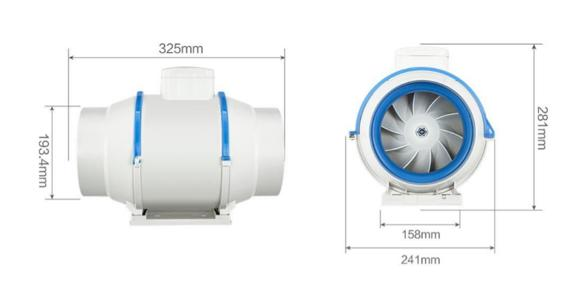

325*241*281 mm
|

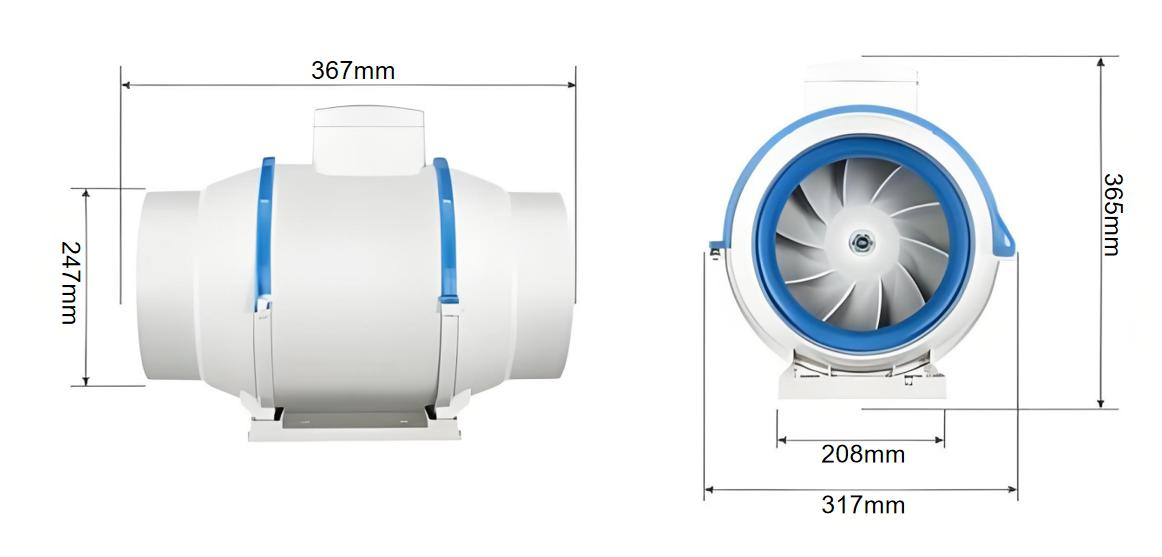

367*317*365 mm
|

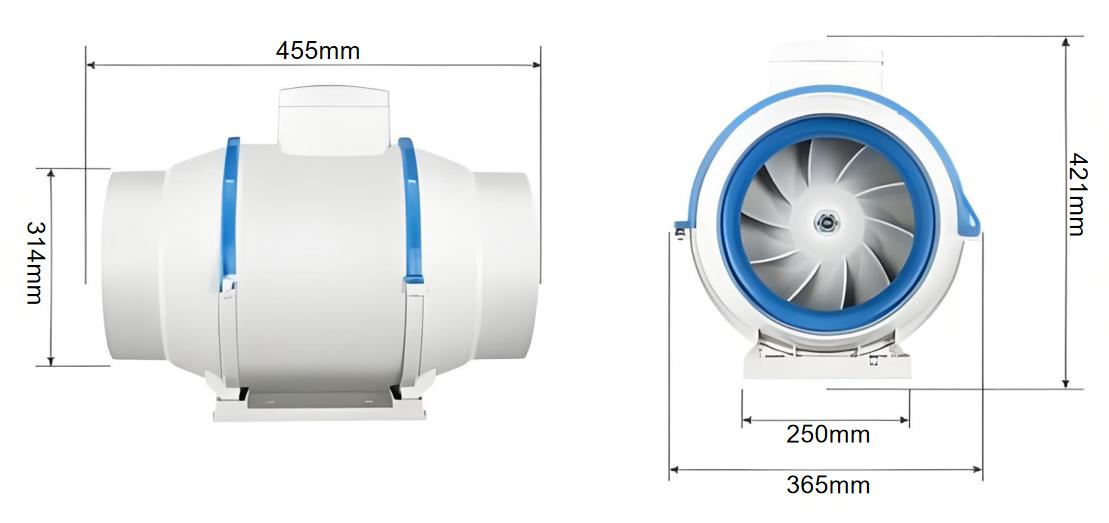

455*365*421 mm
|
320*197*234 mm
|
